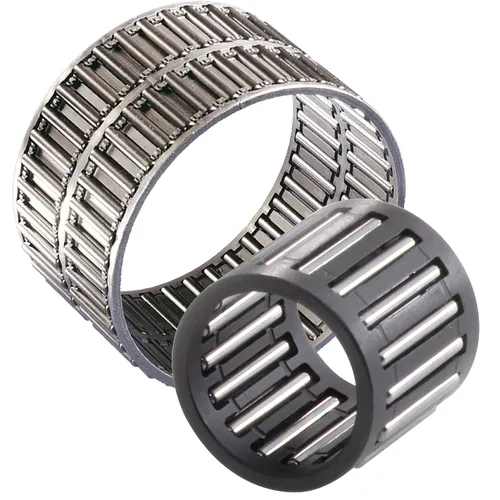

What Is an Axial Needle Roller and Cage Assembly?

An axial needle roller and cage assembly is a flat, ring-shaped cage holding a set of thin needle rollers, without any built-in washers or outer housing of its own. It is designed to sit directly between two machine surfaces, such as a shaft shoulder and a housing face, carrying thrust load through the smallest possible space.

Because there is no washer or shell taking up extra height, this assembly is often only a few millimetres thick, even though it can still handle a fair amount of steady thrust load. Many designs pair the cage with separate hardened axial washers when the surrounding machine parts are not hard enough to act as raceways on their own.

This type of thrust component is common in gearboxes, small pumps, hand tools, and any compact machine where a designer needs to support end-thrust without adding bulk to the overall size.

Axial Needle Roller and Cage Assembly vs Axial Cylindrical Roller Bearing: What Is the Difference?

An axial cylindrical roller bearing uses larger, thicker rollers built for very heavy, continuous thrust load in presses and mills, but it needs noticeably more axial space to work. An axial needle roller and cage assembly uses thin needle rollers in a slim flat cage, giving up some load capacity in exchange for taking up far less room. Where a design has generous space and heavy load, the cylindrical roller bearing is the stronger choice; where space is tight and load is light to moderate, the needle roller and cage assembly is usually the better fit.

Types of Axial Needle Roller and Cage Assemblies

• Washer-Free Cage Assembly (AXK Series): This basic type is just the needle rollers and cage, meant to run directly against hardened machine surfaces without any separate washer.
• Cage Assembly with Axial Washers (AXK + AXW): Here, hardened flat washers are added on either side of the cage, useful when the surrounding parts are not hard enough to serve as raceways.
• Combined Radial-Thrust Needle Assembly (NKX Series): This design adds a radial needle bearing section below the thrust cage, so one compact part can support both sideways and end-thrust load together.
• Double Cage Assembly: Two thrust cages are stacked with a shared centre washer, letting the unit take load pushing from either direction in a still-compact package.

Axial Needle Roller and Cage Assemblies: Part Numbers, Sizes & Applications

The table below lists common sizes of axial needle roller and cage assemblies and where each is typically used. Share your available axial space and expected load with our technical team for an exact match.

Benefits of Choosing the Right Axial Needle Roller and Cage Assembly

• Extremely Slim Design: Fits into spaces only a few millimetres deep, where a full bearing would never fit.
• Good Load Support for Its Size: Needle rollers pack more load capacity into a small footprint than balls of the same size.
• Simple to Fit: Drops directly between two flat surfaces without complex housing work.
• Flexible Washer Options: Can run washer-free on hardened parts or with separate washers where needed.
• Lightweight: Uses far less material than a full thrust bearing, helping keep overall machine weight down.
• Cost-Effective for Light to Moderate Load: A budget-friendly way to add thrust support without a full bearing housing.

Country-Wise Use of Axial Needle Roller and Cage Assemblies in Our Export Network

How to Select the Right Axial Needle Roller and Cage Assembly

• Measure Available Axial Space: Note the exact gap between the two facing surfaces before choosing a cage thickness.
• Check Surface Hardness: Use separate axial washers if the mating parts are not hard enough to act as raceways.
• Estimate the Thrust Load: Confirm the load is within light to moderate range suited to this assembly type.
• Consider Two-Direction Needs: A double cage design is needed if thrust can push from either side.

Common Mistakes to Avoid When Choosing an Axial Needle Roller and Cage Assembly

• Skipping Washers on Soft Surfaces: Running the cage directly on a soft, unhardened surface wears out the rollers and the surface quickly.
• Using It for Heavy Continuous Load: This assembly is not meant for the heavy, non-stop duty a full thrust bearing is built for.
• Ignoring Correct Cage Orientation: Fitting the cage upside down or misaligned can cause uneven roller contact and early wear.
• Forgetting Lubrication: Even a thin cage assembly needs a light film of grease to run smoothly and avoid dry wear.

Simple Maintenance Tips for Longer Life

Check for any looseness or side-to-side play at the thrust point during routine servicing, since this often signals a worn cage or washer. Keep a light film of grease on the assembly at all times, since a dry-running cage wears out far faster than a properly lubricated one. Inspect the mating surfaces for scoring or roughness whenever the assembly is removed, since a damaged surface will quickly wear out a new cage as well.
