Spindle Bearing

What Is a Spindle Bearing?

A spindle bearing is a special type of ball bearing built for one job: holding the spindle (the fast-rotating shaft) of a machine tool in place. Spindles run at very high speeds inside machines like lathes, milling machines, grinders, and CNC (computer-controlled) machines. Because the shaft spins so fast, the bearing must be extremely accurate, run cool, and stay stable. Spindle bearings are made with tighter tolerances than normal bearings, so the shaft does not wobble even at high speed. This helps the machine cut, drill, or grind with precision.

Types of Spindle Bearing

Spindle bearings come in different designs. Each design is made for a different speed, load, or accuracy need.

a) Angular Contact Spindle Bearings

These bearings have raceways set at an angle. This angle lets them carry both radial load (side force) and axial load (end-to-end force) at the same time. They are the most common spindle bearing type and are used in most CNC machine spindles.

• 7008 spindle bearing has a 40 mm bore and is used in medium-duty CNC milling spindles.
• 7010 spindle bearing has a 50 mm bore and is used in lathe and grinding spindles.
• 7012 spindle bearing has a 60 mm bore and is used in heavy-duty machining centre spindles.

b) Super Precision Spindle Bearings

These bearings are made to very strict accuracy classes (P4, P2). They are used where the machine must hold a very tight tolerance, such as in aerospace parts, precision moulds, and optical equipment manufacturing.

c) Ceramic Hybrid Spindle Bearings

These bearings use ceramic balls with steel rings. Ceramic balls are lighter and harder than steel balls. This means the bearing can run faster, stays cooler, and lasts longer under high-speed conditions. They are used in high-speed CNC and grinding spindles.

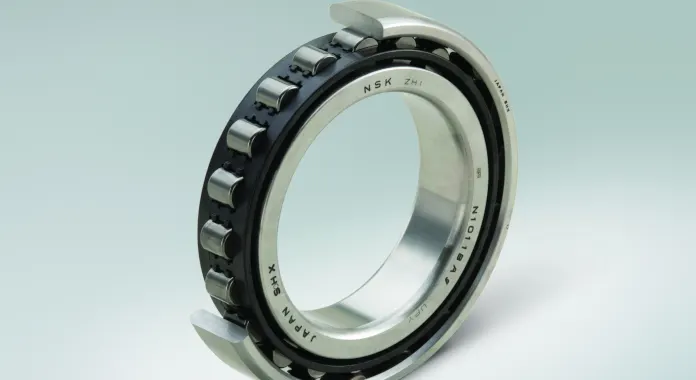

d) Cylindrical Roller Spindle Bearings

These bearings use rollers instead of balls. Rollers touch the raceway along a line, not a point, so they can carry heavier radial loads. They are used in heavy-duty lathe and boring machine spindles that need extra load support.

e) Spindle Bearing Sets (Duplex and Triplex Pairs)

Spindle bearings are often used in matched sets of two (duplex) or three (triplex) bearings. Matching the bearings this way spreads the load evenly and improves rigidity, which is important for the accuracy of the finished part.

Quick Reference: Spindle Bearing Types & Common Bore Sizes

Benefits of Using a Quality Spindle Bearing

Choosing the right, well-made spindle bearing from a trusted supplier gives real advantages across every industry that uses machine tools:

1. Higher Cutting Accuracy: A quality spindle bearing keeps the shaft steady at high speed. This means the machine cuts, drills, or grinds parts with tighter tolerance and less rejection, which is important for precision manufacturing units across Indonesia, Thailand, and the UAE.
2. Lower Heat and Longer Life: Spindle bearings are built to run cool even at high RPM. Good grease and correct clearance reduce friction, so the bearing lasts longer before it needs replacement. This lowers maintenance cost for continuous production plants in Egypt and South Africa.
3. Higher Speed Capability: Special designs, like ceramic hybrid bearings, let the spindle spin faster without overheating. Faster spindle speed means faster machining, which increases output for factories in Kuwait and Nigeria.
4. Stable Performance Under Load: Angular contact and roller designs are matched to the load direction of the machine. This keeps the spindle rigid during heavy cutting, avoiding vibration and part errors, which matters for heavy engineering workshops across Sri Lanka and South Africa.
5. Reduced Downtime: A correctly selected and correctly fitted spindle bearing fails less often. Fewer unplanned breakdowns mean the machine keeps running, which is a big cost saving for manufacturing units in Thailand and Indonesia.
6. Easy Replacement with Standard Sizes: Spindle bearings are made to standard international bore sizes. This makes it easy to find a matching replacement, even when the original achine brand is hard to source parts for, which is a common need in export markets.
7. Consistent Performance in Hot and Humid Climates: Shree Balaji Export supplies spindle bearings pre-packed with grease suited to a wide temperature range, giving steady performance from the humid workshops of Indonesia and Sri Lanka to the high heat of UAE and Kuwait factories.

Industry Applications of Spindle Bearing

The spindle bearing is a key part inside every machine that cuts, grinds, drills, or shapes material at high speed. It is used across many industries worldwide:

CNC Machining and Metalworking

Across manufacturing hubs in the UAE, Egypt, and South Africa, spindle bearings support the main spindle of CNC lathes, milling machines, and machining centres. A precise spindle bearing lets these machines make accurate metal parts for automotive, engineering, and general manufacturing industries.

Grinding Machines

Grinding machines used in tool rooms and workshops across Thailand and Indonesia rely on spindle bearings that can run at very high speed with almost no wobble. This gives the fine surface finish that grinding operations need.

Textile and Packaging Machinery

Textile mills and packaging plants across Sri Lanka, Egypt, and Nigeria use high-speed spindles in winding, twisting, and packaging equipment. Spindle bearings in these machines must run for long hours with minimal heat build-up.

Wood and Stone Cutting Machinery

Wood-working and stone-cutting equipment used in construction and furniture industries across Kuwait, Nigeria, and South Africa use spindle bearings in the router and cutting head, where high speed and low vibration are needed for a clean cut.

Printing Machinery

Printing presses across Egypt, the UAE, and Thailand use spindle bearings in high-speed roller and cylinder assemblies, where accurate rotation is needed to keep printed material aligned.

Conclusion

The spindle bearing is one of the most important parts inside any machine that needs high-speed, high-accuracy rotation. By combining tight tolerance, low heat, and strong load support in one compact bearing, it allows machine tools to cut, grind, and shape parts with the precision that modern industry demands — from CNC workshops in Dubai to textile mills in Sri Lanka, and from grinding shops in Thailand to packaging lines in Nigeria.

For procurement teams, machine builders, and parts distributors across Asia, Africa, and the Middle East, sourcing spindle bearings from a supplier with real technical knowledge and a dependable export supply chain is essential to keep machines running smoothly. The right spindle bearing, correctly selected and reliably supplied, protects far more expensive machinery and keeps production on schedule.
