Needle Roller and Cage Assemblies

What Is a Needle Roller and Cage Assembly?

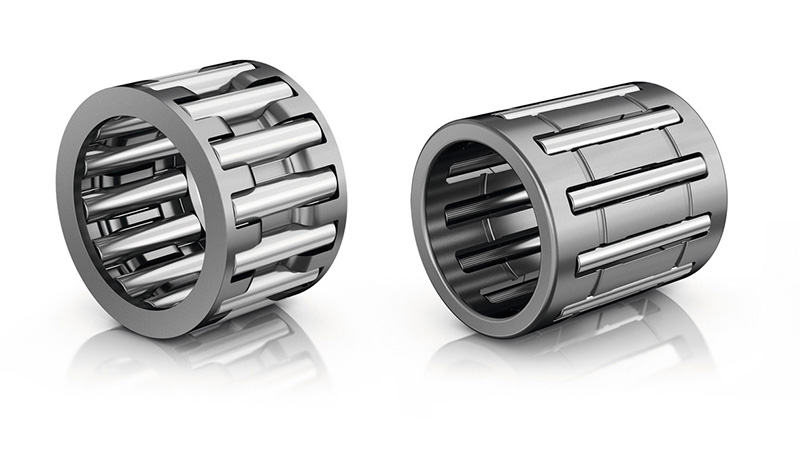

A needle roller and cage assembly is made up of a set of thin, long rollers, called needle rollers, held apart at equal spacing by a metal or plastic cage. Unlike most other bearings, this assembly does not come with its own inner ring or outer ring. Instead, the rollers run directly on the surface of the shaft and inside the bore of the housing, so both surfaces must be hardened and ground smooth to act as the raceway.

Because the rollers are thin and long compared to their diameter, this assembly can carry a fair amount of radial load while using very little space around the shaft. This makes it a top choice for parts like connecting rods, universal joints, gearbox idler gears, and compressor piston pins, where there is not much room to fit a full bearing with two rings.

Since there is no outer ring, the cage also helps guide the rollers in a straight line and stops them from tilting or skewing while the shaft turns. Good lubrication is important here, since the rollers are in direct contact with the shaft and housing metal, and any dirt or dryness can quickly score these working surfaces.

Needle Roller and Cage Assembly vs Standard Roller Bearing: What Is the Difference?

A standard roller bearing comes complete with an inner ring, an outer ring, and rollers in between, so it can be fitted onto almost any shaft or housing without extra machining. A needle roller and cage assembly skips both rings to save space, but this means the shaft and housing bore must be hardened, ground, and sized correctly to work as the raceway. This makes it the better pick when radial space is tight and the shaft can be properly prepared.

Types of Needle Roller and Cage Assemblies

These space-saving roller sets are grouped by their build and how they are meant to be fitted:

• Single Row Needle Roller and Cage Assembly (K Series): This is the most common type, with one row of needle rollers held in a light cage. It is simple to fit into a machined bore and is widely used in gearboxes, motorcycle transmissions, and small machine parts.
• Drawn Cup Needle Roller and Cage Assembly: This version comes inside a thin, pressed outer shell called a drawn cup, which protects the rollers and makes handling easier during fitting. It suits smaller, mass-produced parts like power tool gearboxes and small pumps.
• Full Complement Needle Roller Assembly: Here the assembly is built without a cage, so more rollers fit into the same space. This raises the load capacity further, though running speed is usually lower than a caged design. It is used where maximum load capacity matters more than high speed.
• Combined Needle Roller Assembly: This design pairs needle rollers with a ball bearing or thrust washer in one unit, so it can carry radial load and a small amount of axial load together. It is common in gearbox shafts that need support from more than one direction.

Needle Roller and Cage Assemblies: Part Numbers, Sizes & Applications

The table below shows common series of needle roller and cage assemblies, their usual size range, and where each type is generally used. Share your shaft size and housing bore details with our technical team for an exact match.

Benefits of Choosing the Right Needle Roller and Cage Assembly

• Saves Valuable Radial Space: Thin rollers without extra rings free up room in compact parts, helping equipment designers in South Africa and Nigeria fit more into less space.
• Carries Good Radial Load: The long roller shape spreads out load well, useful for gearbox and engine parts running in Thailand and Indonesia.
• Lower Cost Per Unit: Without machined inner and outer rings, this assembly often costs less than a full bearing, helping budgets stretch further in Egypt and Sri Lanka.
• Simple to Replace: A worn cage assembly can often be swapped out quickly, cutting maintenance time for workshops in the UAE and Kuwait.
• Wide Range of Sizes: Standard K series and drawn cup options make it easy to match small gearboxes, joints, and hand tools.
• Good Fit for Oscillating Motion: Needle roller assemblies handle small back-and-forth movement well, common in linkages and levers.

Where Needle Roller and Cage Assemblies Are Used Across Our Export Markets

• Sri Lanka: Small farm equipment gearboxes and hand tool drives use needle roller and cage assemblies where space is limited.
• South Africa: Mining equipment linkages and compact gearboxes rely on needle roller assemblies for reliable, space-saving support.
• UAE: Building maintenance power tools and pump couplings use needle roller and cage assemblies for compact, smooth running.
• Nigeria: Motorcycle and light vehicle gearboxes use needle roller and cage assemblies to keep transmissions compact and efficient.
• Egypt: Textile machine linkages and small pump drives use needle roller assemblies where shaft space is tight.
• Indonesia: Motorcycle assembly lines and small engine gearboxes use needle roller and cage assemblies in high volumes.
• Thailand: Automotive parts manufacturing and compressor units use needle roller and cage assemblies for compact, durable support.
• Kuwait: Oil field hand tools and compact pump gearboxes use needle roller and cage assemblies to handle load in tight spaces.
• Worldwide: Wherever a machine part has heavy load but very little room around the shaft, a needle roller and cage assembly is a practical, space-saving choice.

How to Select the Right Needle Roller and Cage Assembly

• Check the Shaft and Housing Surface: Both must be hardened and ground smooth, since they act as the raceway for the needle rollers.
• Measure Bore, Outer Diameter, and Width: These three sizes decide which K series or drawn cup assembly will fit correctly.
• Confirm the Load and Motion Type: Continuous rotation, oscillating motion, or combined load each suit a slightly different assembly design.
• Plan the Lubrication Method: Since the rollers touch the shaft and housing directly, a steady, clean supply of oil or grease is essential.

Common Mistakes to Avoid When Choosing a Needle Roller and Cage Assembly

• Using an Unhardened Shaft: A soft or unhardened shaft surface wears out fast under direct roller contact, shortening assembly life.
• Wrong Bore Tolerance: A housing bore that is too loose or too tight can cause the cage to bind or the rollers to skew.
• Poor Lubrication Access: Without proper oil or grease holes, the rollers can run dry and score the shaft surface quickly.
• Ignoring Axial Load Needs: A basic needle roller assembly does not handle axial load well, so a combined design should be chosen where needed.

Simple Maintenance Tips for Longer Life

Check the shaft surface for scoring or discolouration during routine service, since this is often the first sign of dry running or contamination. Listen for a light, even sound during normal running — a rough or scratchy noise usually means the rollers or shaft surface are damaged. Keep to the recommended greasing schedule, and make sure lubrication points are never blocked, since dirt or dryness is one of the fastest ways to damage this type of assembly.
